Cloudray motor driver offers you various control modes such as position control, velocity control or torque control for precise motion control system. Cloudray motor driver offer the best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options, and industry-standard industrial network communications.
DM series stepper drive, which surpasses the performance of common analog stepper drive comprehensively based on the new 32-bit DSP platform developed by TI, and adopting the micro-stepping technology and PID current control algorithm design.
The DM series stepper drives have the features of low noise, low vibration, low heating and high-speed high torque output, it is suitable for most stepper motors by integrated with the micro-stepping technology.
The DM 556S driver can select the running current and subdivision through the DIP switch. There are 16 subdivisions and 8 current selections. It has overvoltage, undervoltage and overcurrent protection. Its input and output control signals are optically isolated.
The power supply of the drive can be both AC power and DC power, and the input voltage range is 24V~50VDC.
Input power polarity should not be reversed!!!
The drive’s work mode is constant current control. The drive output the voltage to motor by changing the input power into PWM chopping wave when it is working. In this case, the input power will affect the performance of drive.
Stepper Drive Environmental requirement
Drive installation requirements
Please install the drive vertically or horizontally, with its front facing forward, top facing upward to facilitate cooling.
During assembly, avoid drillings and other foreign matters falling inside the drive.
During assembly, please use M3 screw to fix.
When there is vibration source (such as a driller) close to the installation position, please use a vibrating absorber or a vibration resistant rubber gasket.
When multiple drives are installed in the control cabinet, please pay attention to reserve enough space for sufficient heat dissipation. If necessary, you can configure cooling fans to ensure good heat dissipation conditions in the control cabinet.

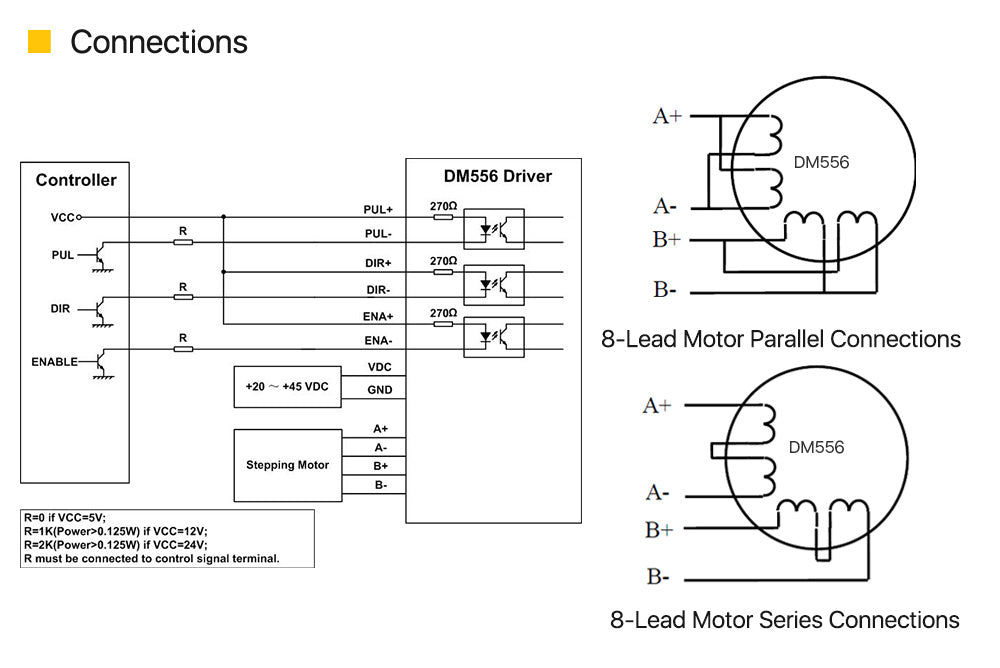

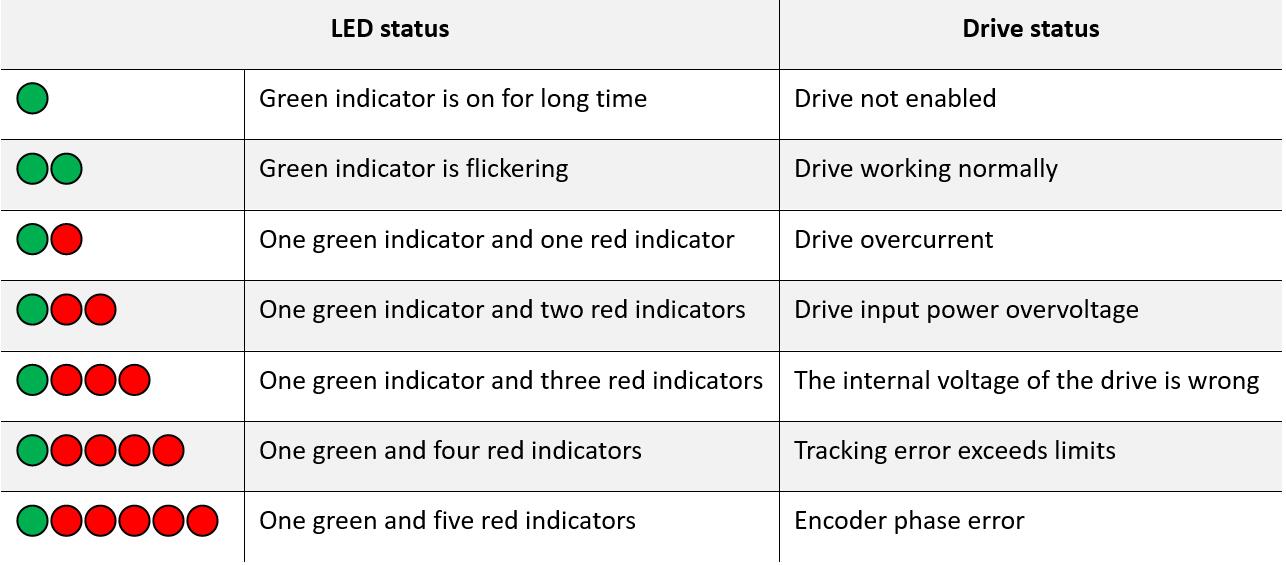

Drive working status LED indication
Stepper motor driver application
Cloudray stepper motor and Stepping Motor Driver are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
