How to calculate the speed according to frequency(PPS) for the stepping motor


How to calculate the speed according to frequency(PPS)  for the stepping motor

Simply, we have provided a formula: v=f/n
v: motor speed(rps) f: frequency(pps)
n: number of micro step, you can find it on stepper driver.
eg: When stepper motor driver receiving frequency 4000pps from controller, and mirco step setting on the driver is: 2000, the speed of motor is: v=4000/2000=20rps=1200rpm

Cloudray Stepper Motor Series has set the standard for quality, reliability, and durability in stepping motors. The precision of our Torque Power motors is matched only by the dependability of their performance. All Torque Power motors are bi-directional and totally enclosed with permanently lubricated ball bearings for long-lasting, smooth operation.

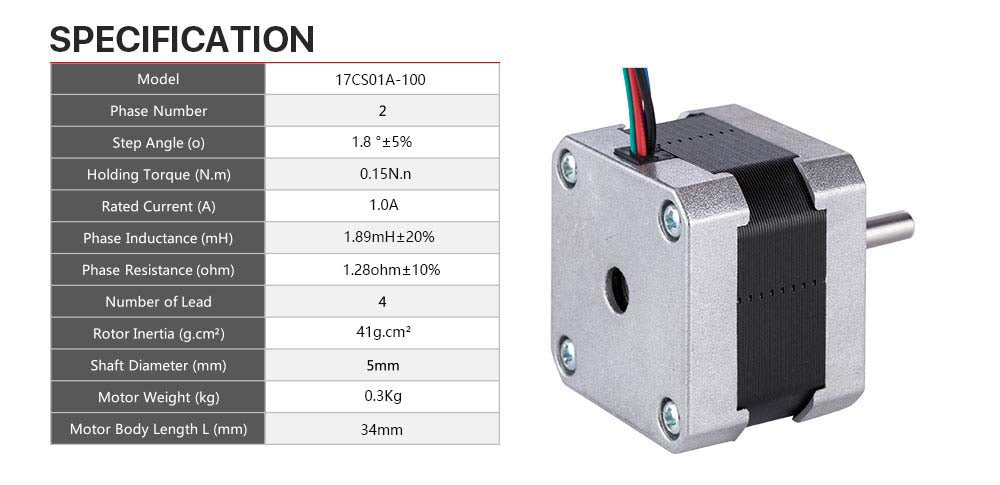

nema 17n stepper motor
High Torque, High Precision and Long life is Cloudray's core advantages
Low vibration,Low heating, No loss of step
Fast Response,Better Acceleration Performance
Thanks to a robust design they can be selected for the harshest environments. Precise, open-loop, speed and position control can be achieved with the application of full step, half step, or microstepping electronics.
 NEMA Stepper Motor
Higher Resolution,Avoidance of Resonance Regions
Stepping angle is adjustable( rang in 18°±5%), 0.9 °stepper motor's stepping angle is smaller, fineness is higher and positioning is more accurate.Avoiding vibration,runs more smoothly and gets lower noise.
 NEMA Stepper Motor
Sturdy structure, extremely long life
High quality materials including bearings and shaft made in Japan
Robust assembly, high speed range, and exceptional performance in even the harshest environments make Cloudray Stepper Motors the perfect solution for demanding positioning applications.
 NEMA Stepper Motor
Short length and light weight allow them to be used in highly integrated systems
 NEMA Stepper Motor

 NEMA Stepper Motor
 NEMA Stepper Motor
 NEMA Stepper Motor
Stepper motor application
Cloudray stepper motor and Stepping Motor Driver are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
 NEMA Stepper Motor
 NEMA Stepper Motor
 NEMA Stepper Motor
